APPLICATION:
Intended for electro-electronic assemblies, automation, industrial installation.
DESCRIPTION:

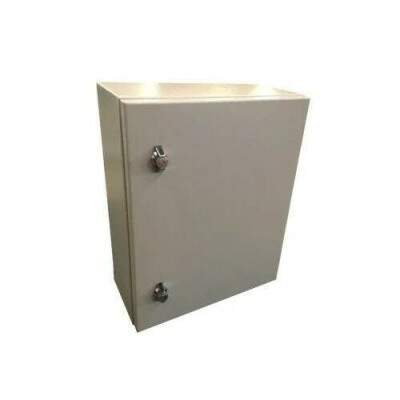

Box with front door, mounting plate, bottom flange. Painted according to NBR16680, electrostatic powder coating polyester resin 80 micrometres thick, box and door in gray RAL 7032, mounting plate in orange RAL 2003.
CONSTRUCTION FEATURES :
- Box made of 1.50mm thick carbon steel plate;
- Mounting plate: made from 2.250mm carbon steel sheet;
- Door in 1.50mm sheet metal with internal hinges opening at an angle of 130º;
- 01 Handle lock for frames with a height of less than 500mm;
- 02 Handle locks for frames with a height of 500mm or more;
- Bottom flange;
- Grounding points on the mounting plate.
